UltraMicro Series Spectrometer

OtO's Photonic's UltraMicro Series range of proprietary MEMS-based microspectrometers includes the world's smallest wideband (200-900nm) spectrometer and the world's smallest spectrometer at just 7cm³.

• Cover from 200~900 nm but 19 gw & 23 × 31 × 8.5 mm³ Only
• Optional Wifi Function
• High Sensitivity & Low Stray Light
• Support Continuous High-Speed Exposures Mode
• Proprietary Stray Light Calibration Algorithm( Stray Light Can be Eliminated to 0.01%)
• On-board CPU Supports Optical and Color Parameters Calculation
• Attractive Cost to Implement Ultra-small & Smart Spectrometer Systems

OtO's MEMS-based microspectrometers replace the "collimator-plane grating-focusing mirror" optical structure used in traditional Czerny-Turner spectrometers with a "non-spherical, mass-producible" micro-sized component which combines grating and focusing functions. The microchip concave grating technology leverages patented algorithms to calculate curvature and ray-tracing to eliminate aberrations and achieve high resolution of 2nm.

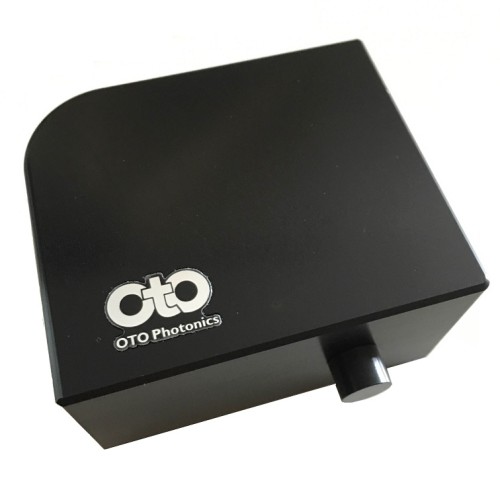

Standard UltraMicro microspectrometers measure just 39.3mm x 43.5mm x 10.1mm (~17.5cm³) and yet the UM1280 and UM2280 can be specified for operation from 380-780nm or 330-850nm with a choice of 25µm and 40µm slits giving resolution of 5.5nm or 10nm.

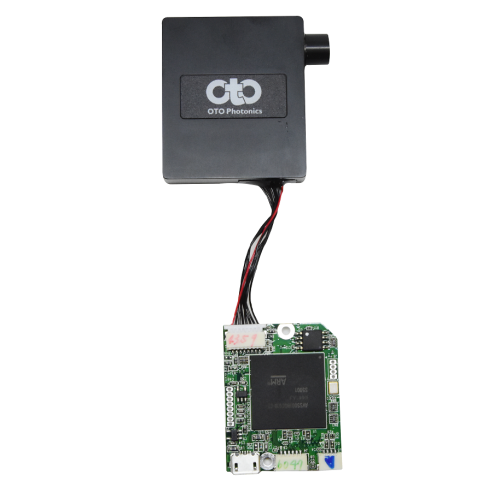

OtO's Advanced UltraMicro ultra-compact AM1280 and sensitivity-enhanced AM2280 microspectrometers are the world's smallest wide band spectrometers measuring just 41.72mm x 44.00mm x 8.96mm (~16.5cm³) and yet can be configured to cover the ranges 200-900nm or 330-900nm. Standard slit sizes are 25µm or 40µm giving resolution of 5.5-10nm.

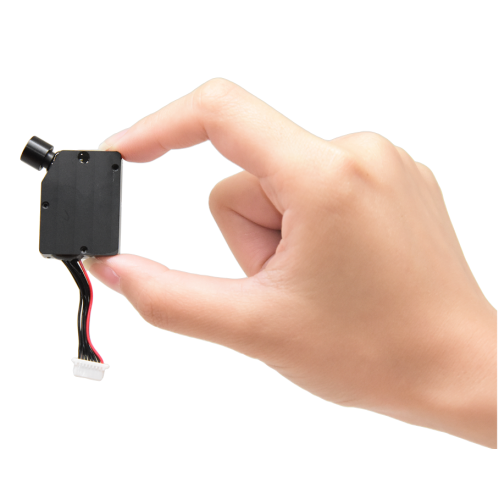

Extreme UltraMicro MEMS-based microspectrometers are the world's smallest spectrometers (23.2mm x 31mm x 8.5mm, 6.1cm³) and yet the UM1390 and UM2390 can also can be specified for operation from 380-780nm or 330-850nm with a choice of 25µm and 40µm slits giving resolution of 5.5nm or 10nm.

All UltraMicro Series microspectrometers offer an SNR of 150, adjustable exposure times from 1ms to 65ms and 2MHz sensor readout rate. They are interfaced via an 8-lead CCD ribbon connector or OtO's optional CB-56M2 external control board with 32bit RISC core and 16bit ADC which provides a USB interface for PC control using OtO's SpectraSmart software.
