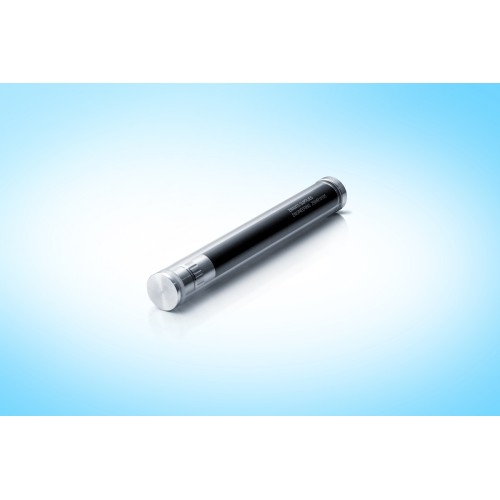

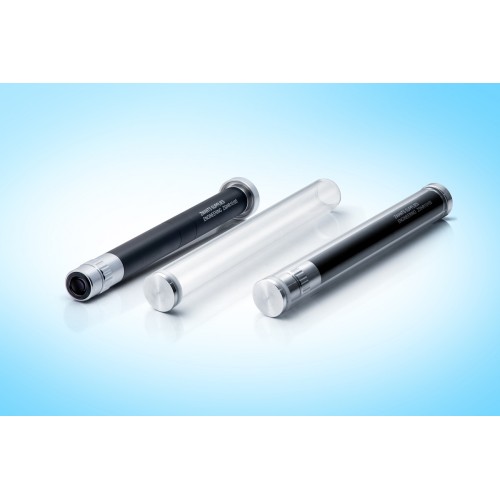

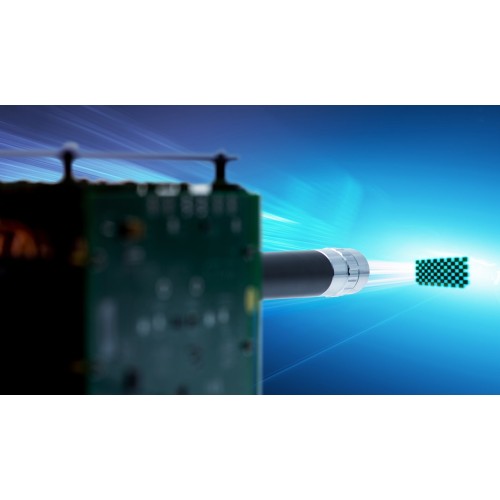

High Resolution 1080p Projection Lens
-
$0.00
- Product Code: HR-Lens
- Availability: 2-3 Days
-
+
Feature:
- Modular all in one DLP®-based production ready industrial projector
- 1080p (1920x1080) square pixel
- All glass telecentic (0% offset) optical architecture
- Various Luminus LED and fiber compatibility
- Up to 9,253 binary FPS and 247 8-bit fps
- Includes DLP® LightCrafter 6500 USB-based API and host GUI
Available light source : 385nm, 405nm & RGB LEDs.
| Pixel size | FOV | WD | |
| 1um-HR lens | 1um +/- 10% | 1.92x1.08mm | 34mm |
| 5um-HR lens | 5um +/- 10% | 9.60x5.40mm | 34mm |
| 10um-HR lens | 10um +/- 10% | 19.20x10.80mm | 72mm |
| 15um-HR lens | 15um +/- 10% | 28.8x16.2mm | 105mm |
